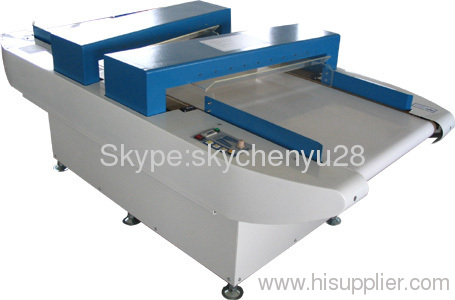

Automatic Belt Conveying Needle Detector NDC-AD (With Double Detection Head) manufacturer from China Rehoo Industrial Limited

Automatic Belt Conveying Needle Detector NDC-AD (With Double Detection Head)

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: wooden case

Type: Others

Automatic Belt Conveying Needle Detector NDC-AD (With Double Detection Head): sensitivity Fe0.8mm

Production Capacity: 100sets/month

Delivery Date: 10days

Brand Name: Rehoo

automatic restart: two detection heads

Needle Detector Machine NDC-D/100mm
Belt width 570mm, height 100mm
Sensitivity Fe0.8mm
Belt stop, buzzer
automatic restart function, belt return

Automatic Belt Conveying Needle Detector NDC-AD (With Double Detection Head)

[FEATURES]

1. Double sensor, high accuracy detection.
2. ABS-plastic shell, small type shape desings.
3. LED display panel, smart counter, exact locating.

[PURPOSE]

Designed for high accuracy detection

[SPECIFICATIONS]

Model: NDC-AD(100)
Detection method: Magnetic induction
Detection sensitivity: 0.8mm steel to small scissors
Detection adjustment: 10step
Detection width: 600mm
Alarm method: Buzzer\Lamp
Belt speed: 32m/min(50HZ)\40m/min(60HZ)
Power source: AC200-240V 50-60HZ
Rated output: Appr140W
Dimension: 2300mm(L)*1650mm(W)*950mm(H)
Weight: Appr240Kg

The specification is under standard test condition. The sensitivity depends on the
working condition. We have no responsibility that metal chips come out after detecting
under non-standard condition.
